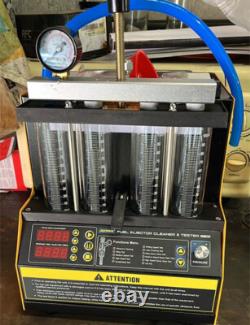

AUTOOL CT160 Ultrasonic Fuel Injector Cleaner Tester Machine Heating Cleaning


AUTOOL CT160 Injector Cleaner Tester with Heated Cleaning is a professional 4-cylinder automotive injector test cleaner. It combines ultrasonic cleaning technology and microcomputer oil pressure closed-loop control cleaning and testing technology to simulate various engine working conditions, clean and test injectors of petrol cars and motorbikes. Its unique design is lightweight and convenient, and it also features a larger 2000ml cleaning tank and cleaning fluid heating function to achieve better cleaning results for fuel injectors.

Why Choose AUTOOL CT160 Fuel Injector Cleaner & Tester Machines? AUTOOL CT160 is an injector diagnostic and cleaning equipment, which is a mechatronic product combining ultrasonic cleaning technology and microcomputerized oil pressure closed-loop control cleaning and testing technology.

This equipment is the first choice in the field of automobile and motorcycle maintenance industry. I recommend choosing the professional upgraded CT400 CT500 They are specialized in cleaning high pressure injectors for GDI EFI FSI etc. AUTOOL CT400 GDI Ultrasonic Fuel Injector Cleaning Machine?? AUTOOL CT500 GDI EFI FSI Fuel Injector Cleaner Tester??????

The CT160 heats the cleaning fluid in the cleaning tank by 45°, which improves the cleaning time of the injectors and increases the efficiency of your injector cleaning operation. Lt can perform ultrasonic cleaning on single or multiple injectors simultaneously, which can eliminate thoroughly blockages on the injector accessories and internal. Compact, lightweight and portable with a net weight of only 8 kg and a large 2000 ml ultrasonic cleaning tank that can clean multiple injectors simultaneously.

Working parameters display and adjustment screen, convenient button with start/pause/stop, 11 working modes function selection and with pressure regulator. Supports most gasoline injectors on the market. The cleaner can also be used to clean diesel injectors. But cannot test diesel injectors.

(Motorcycle support Honda Yamaha Suzuki Samyang only). How do I choose a cleaning solution?

We recommend that you use a specialized syringe cleaner that is readily available at your local supermarket. It is usually very corrosive and flammable and should be used away from sources of ignition and avoided in contact with skin! How do I choose a test fluid? We recommend using a specialized automotive injector test fluid. If this is not available locally, industrial alcohol with an alcohol content of more than 75% can be used instead (usually the test fluid is a colorless, clear, non-irritating odor liquid).

It is an expert in injector solutions, featuring 11 injector-specific functions. Ultrasonic cleaning: It sends signals to the injectors through the pulse signal line, using the cleaning fluid with the ultrasonic vibration so as to completely remove the carbon and impurities inside the injectors.

Idle speed test (0-20ms): Simulate the engine idling speed and test the state of the fuel injector. Medium speed test (0-7.5ms): simulate the engine running at medium speed and test the state of the fuel injector. High-speed test (0-4ms): Simulate the high-speed performance of the engine and test the state of the fuel injector. Acceleration test: Simulate the acceleration state of the car and test the performance of the fuel injector.

Variable Speed Test: Simulate the shifting state of the car and test the working performance of the fuel injector. Leakage test: Test the sealing condition of the fuel injector. Idle Speed Spray Volume Test : Simulate the engine idling state and test the spraying performance of the fuel injector. Medium Speed Spray Volume Test: Simulate the engine medium-speed state and test the spraying performance of the fuel injector. High Speed Spray Volume Test: Simulate the high-speed state of the engine and test the spraying performance of the fuel injector.

Unit Info:Display the product number and date of manufacture of the device. Please note the information regarding test fluids and cleaners:??

Q:What kind of cleaner do I use for the machine? A: We recommend using a special cleaner for injectors, any brand can be used.

Q:What kind of test fluid does the machine use? A: It is recommended that you use special injector test fluid or use industrial alcohol with an alcohol content of more than 75% instead of test fluid. Prohibit the use of corrosive liquids as injector test fluid. It is prohibited to add corrosive liquid directly into the glass test tube, otherwise it will damage the machine seals and injectors. It is prohibited to use cleaning agent instead of test fluid, because the cleaning agent is corrosive and will cause damage to the equipment and injector seals.

3, prohibit the use of gasoline instead of cleaner or test fluid, dangerous and easy to cause safety hazards. 4, it is prohibited to confuse the two liquids of cleaner or test liquid, in which the cleaner is corrosive and easy to damage the machine seals. 1pc AUTOOL CT160 Fuel Injector Cleaner Tester Main Unit.

11mm 4pcs Top inlet connectors? 1pc Extended plug (used to block the holes on the oil separator).

3pcs Plugs for oil separator.
