SpeedBox 3.3 B. Tuning for Yamaha PW-X3, PW-S2 motors and Yamaha YDX-Moro 05, 07



Compatible with motors: PW-X3, PW-S2. Now compatible with e-bikes: Yamaha YDX-Moro 05, Yamaha Moro 07. Not compatible with e-bikes and motors: Yamaha UrbanRush, CrossCore, CrossConnect, Wabash, YDX-Torc. What does this Tuning Kit do? New generation tuning chip with Bluetooth and mobile app for your e-bike.

The SpeedBox 3.3 B. Tuning chip is a top-notch product perfectly optimized for the most powerful ride and experience.

It suppresses the speed limiter so you can enjoy your ride at unlimited speed. The tuning kit manipulates the speed signal without altering the motor's power relative to pedaling speed. This guarantees a smooth motor control without speed limit interruptions. Depending on a tuning kit, some determine when assistance stops, while others remove the restriction entirely for continuous support.

However, the achievable speed mostly depends on the eBike model. Achievable speed can be calculated using a simple formula. Speed = Cadence [rpm] Wheel circumference [mm] Front Chainring Teeth / Rear Chainring Teeth 60 [min/h] / 1.000.000 [mm/km].

The tuning kit can be activated directly from the mobile application or on your e-bike's display. After pressing the LIGHT button or????

, a value of 9.9 km/h (6.2 mph) is displayed and from now on you will be able to ride at an unlimited speed. For displays that do not show decimal numbers, the value of 9 km/h will be displayed. To deactivate the tuning kit, press the LIGHT button or???? The value of 2.5 km/h (1.6 mph) will appear on your display and the speed limit will reset to 25 km/h. Your e-bike will then work the same as before installation of the chip. For displays that do not show decimal numbers, the value of 2 km/h will be displayed. By activating this function, the lights become independent of tuning. By double-clicking on the LIGHT button, the lights will flash, and the tuning will turn on. SpeedBox was also designed for e-bikes that do not have a classic control unit.

In this case you can just use the combination of???? buttons and SpeedBox will be activated. You can easily deactivate SpeedBox in the same way.

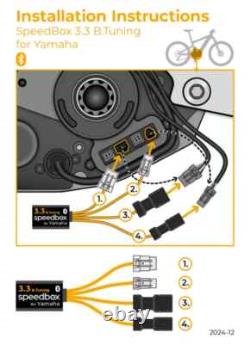

You can set the maximum speed of an electric assistance by changing modes three levels down and then three levels up. An actual speed limit will be displayed after that. The maximum speed of an electric assistance can be switched (always rounded up by 5 km/h) by pressing LIGHT button shortly or by turning the rear wheel 360°. The last displayed limit will be saved after 5 seconds of inactivity. Is this Speedbox the right tuning kit for my bike? Not compatible with e-bikes and motors. How to install this tuning kit? When connecting the SpeedBox tuning kit to an e-bike you will find connectors colored to make installation very simple.

We have prepared detailed instructions and videos to make installation easy for you. Disassembly of our tuning chip is just as easy. If you are planning to install SpeedBox on a brand-new bike, make sure you ride it for at least 0.6 miles (1 km) before the chip is activated Installation video. SpeedBox App specifically designed for SpeedBox B. You can save your trips, compare them with friends and monitor your own performance, so just enjoy the ride to the fullest and leave checking the parameters for later!

Saving and viewing your trips. Tuning chip can be used even without the SpeedBox App.

However, it is a great accessory that will give you a complete overview of your performance. Most sport apps use only rough estimates of values. That's why these data may differ from the real electric bike data by up to 20%. SpeedBox App displays completely accurate data, which is read directly from the electric bike's control unit.

Important legal note Please note that the operation of this type of modified electric bikes on public roads may be against the law in some countries. Electric bikes equipped with SpeedBox products are not allowed to be used on public roads, cycling paths and public places. Electric bikes equipped with SpeedBox products can be used exclusively on private property and entirely at one's own risk. We strongly recommend using other safety features and protective gear to prevent injuries in higher speeds.

SpeedBox Products are thoroughly tested and we stand by their quality.
